Fieldpiece Job Link® System Large Pipe Clamp – JL3LC
£123.80 + VAT
2 in stock
Order by 1pm Weekdays for Next Day Delivery!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Part No : JL3LC

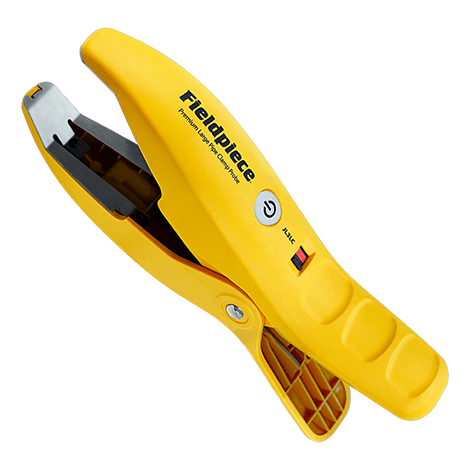

Fieldpiece Job Link® System Large Pipe Clamp
Fieldpiece offers high-tech large pipe clamps.
- Large jaw opening, between 3/4″ to 4 1/8″;
- 300m wireless range;
- Rapid Rail™ Sensor Technology;
- On-board data logging.
The JL3LC Pipe Clamps have the widest clamp openings on the market, ensuring you can take quick and easy measurements on any system.
Four reasons why you need the JL3LC Pipe Clamp
1. Fit for all HVACR systems
With the widest clamp opening on the market, the JL3LC is designed to help you get your measurements on any system. The large jaw opening ranges from ¾” to 4 ⅛”, fitting all common HVACR systems.
2. Wireless and fast
As part of the Job Link® tools, the JL3LC communicates with the Job Link® app and SMAN® Digital Manifolds so you can receive your measurements from anywhere on site in real time. With a 300m wireless range, you never have to worry about running around and trying to be in multiple places at the same time.
3. Rapid Rail™ Sensor Technology
The patented Rapid Rail™ Sensor Technology ensures the JL3LC gives you the most accurate reading possible. With two sensors on the Pipe Clamp, the pipe itself completes the circuit on both sides, giving you a stabilized and accurate reading within seconds, no matter the outside influences or conditions.
4. On-board data logging
The JL3LC comes equipped with a data logging feature so you can look back at measurements easily and quickly.
Specifications
Product :-
- Pipe Contact Surface Compatibility: Electrically conductive
- Pipe Size Compatibility: 3/4″ to 4 1/8″ (19.05mm to 104.775mm) OD
- Sensor Type: Rapid Rail™ thermocouple (nickel chromium / nickel aluminum)
- Measurement Feedback: Beeper and LED
- Measurement Range: -46°C to 125°C. Plastic body and wire insulation are designed to withstand a maximum continuous temperature of 125°C.
- Stabilization Time: 3 seconds typical
- Accuracy: ±2.2°C thermocouple only ±0.6°C after field calibration
- Battery Type: 2 x AAA, NEDA 24A, IEC LR03
- Battery Life: 150 hours typical alkaline – LED blinks red when battery replacement is needed
- Auto Power Off: 2 hours (APO can be disabled)
- Wireless Range: 300 meters line of sight
- Radio Frequency: 2.4 GHz
- Operating Environment: -20°C to 50°C at <75% RH
- Storage Temperature: -20°C to 60°C, 0 to 80% RH (with batteries removed)
- Temperature Coefficient: 0.1 x (specified accuracy) per 1°C (-20°C to 18°C, 28°C to 50°C)
- Weight: 277 g
Included in package :-
- 1x JL3LC Job Link® System Large Pipe Clamp
- 1x Emery Cloth for Cleaning Pipes
- 2x AAA Batteries
