Aspen Mini Lime Condensate Pump with Signal White Eurosplit Trunking

The New Mini Lime is Aspen’s all-in-one elbow mini pump. Complete with a 620mm length of EuroSplit trunking – less waste and better value! Need more trunking options and the world’s quietest mini pump? Please see our Silent+ Mini Lime

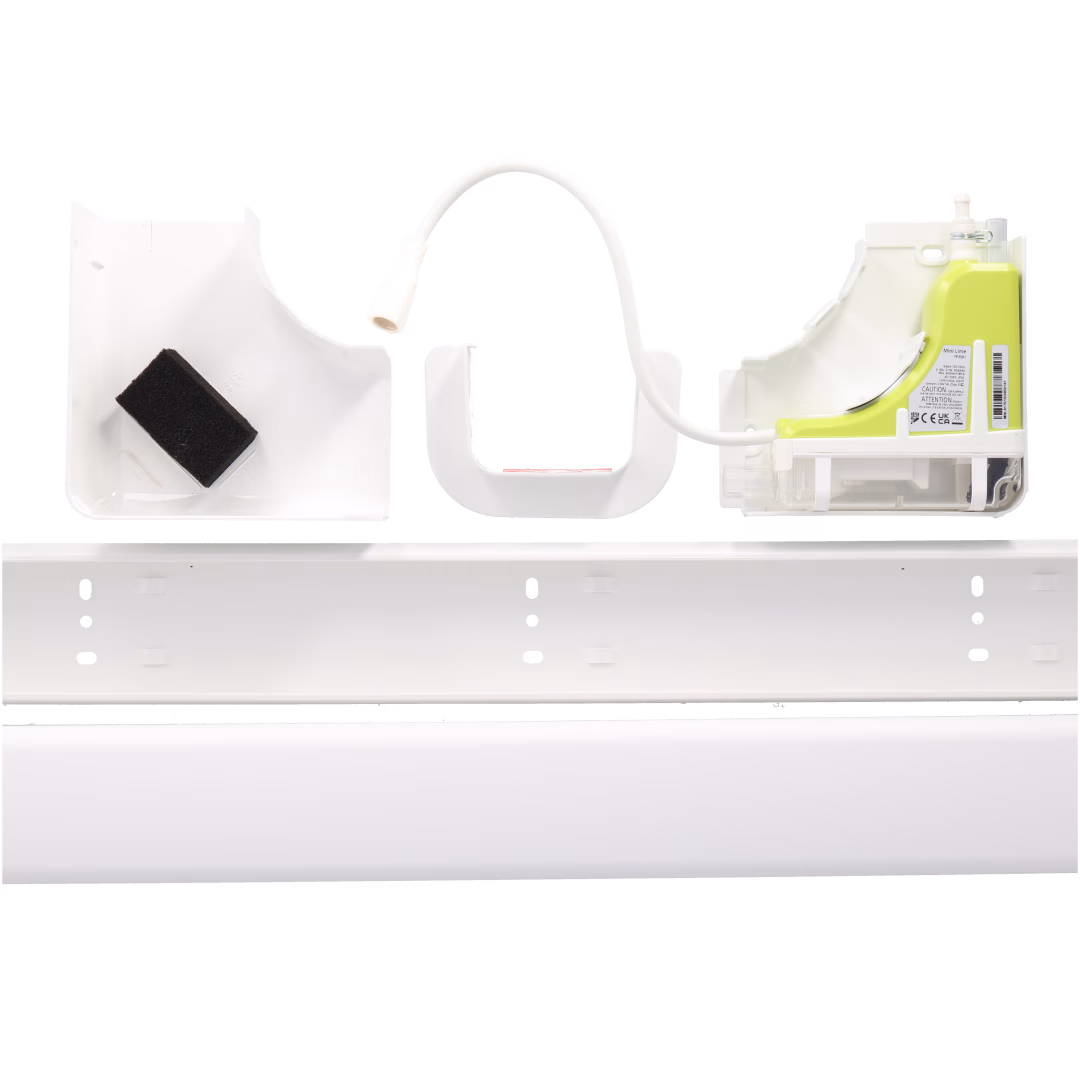

In The Box :-

• Mini Lime pump (including 1.5m Plug & Play cable)
• 220mm inlet hose 14mm ID
• 40mm Vinyl breather tube 6mm ID
• Elbow front and back
• 620mm trunking front and back
• Ceiling plate
• Drain connector kit
• Fixing kit
• Quick start guide

Key Features :-

• Plug & Play
• Fits all popular trunking systems
• Quick install
• Up to 26kW / 90,000Btu/h
• High wall split systems
• Left or right install
• Perfect for… Commercial and domestic use

Suitability :-

• Up to 26kW / 90,000Btu/h
• High wall split systems
• Left or right install with range of trunking systems
• ✓ Perfect for commercial and domestic use where silence is important

Technical Specs :-

• Max. Flow – 20L @0m head per hr
• Max. rec. head – 15m
• dB(A) @ 1m – As low as 19
• Power supply – 100-250 VAC, 0.18A, 2.1W, 50/60Hz
• Rated – Continuous
• Class – II appliance
• Max. unit output – Up to 26kW / 90,000Btu/h
• Max. ambient temp – 40°C
• Inlet/Outlet connections – Inlet o/d : ø16mm Outlet o/d : ø6mm
• IP Protection – IP24
• Safety switch – 5.0A N.C (Normally Closed)
• Self priming – ✓
